Cross Sectional Dimension
Physical width of a spun textile strand measures the spatial clearance required by the yarn inside fabric structures and processing guides. Technicians determine yarn diameter through optical microscopy, digital image analysis or theoretical calculations based on yarn linear density and nominal fibre packing density. Unlike continuous synthetic monofilaments, spun yarns lack absolute circular cross-sections due to fibre twist, internal void spaces and variable surface hairiness.
Accurate evaluation of the effective strand dimension enables engineers to calculate cloth cover factors, design reed denting schedules and configure tension gate clearances across textile machinery.
Bast Fibre Calculation
Flax processing facilities calculate theoretical diameters using indirect yarn count systems such as lea, metric count or English cotton count combined with empirical packing density constants. Flax fibres possess an average raw fibre density near 1.50 grams per cubic centimetre, but spun linen yarn incorporates internal air pockets that lower effective mass density within the cross-section. Quality assurance records document true yarn diameter using computerized optical diameter gauges that measure yarn silhouettes across rotating angles to compensate for cross-sectional ellipticity.
Wet-spun long-staple linen yarns yield narrower, more uniform diameters than dry-spun yarns of identical linear density because water exposure compacts bast bundles during twist insertion.
Weaving Setup Impact

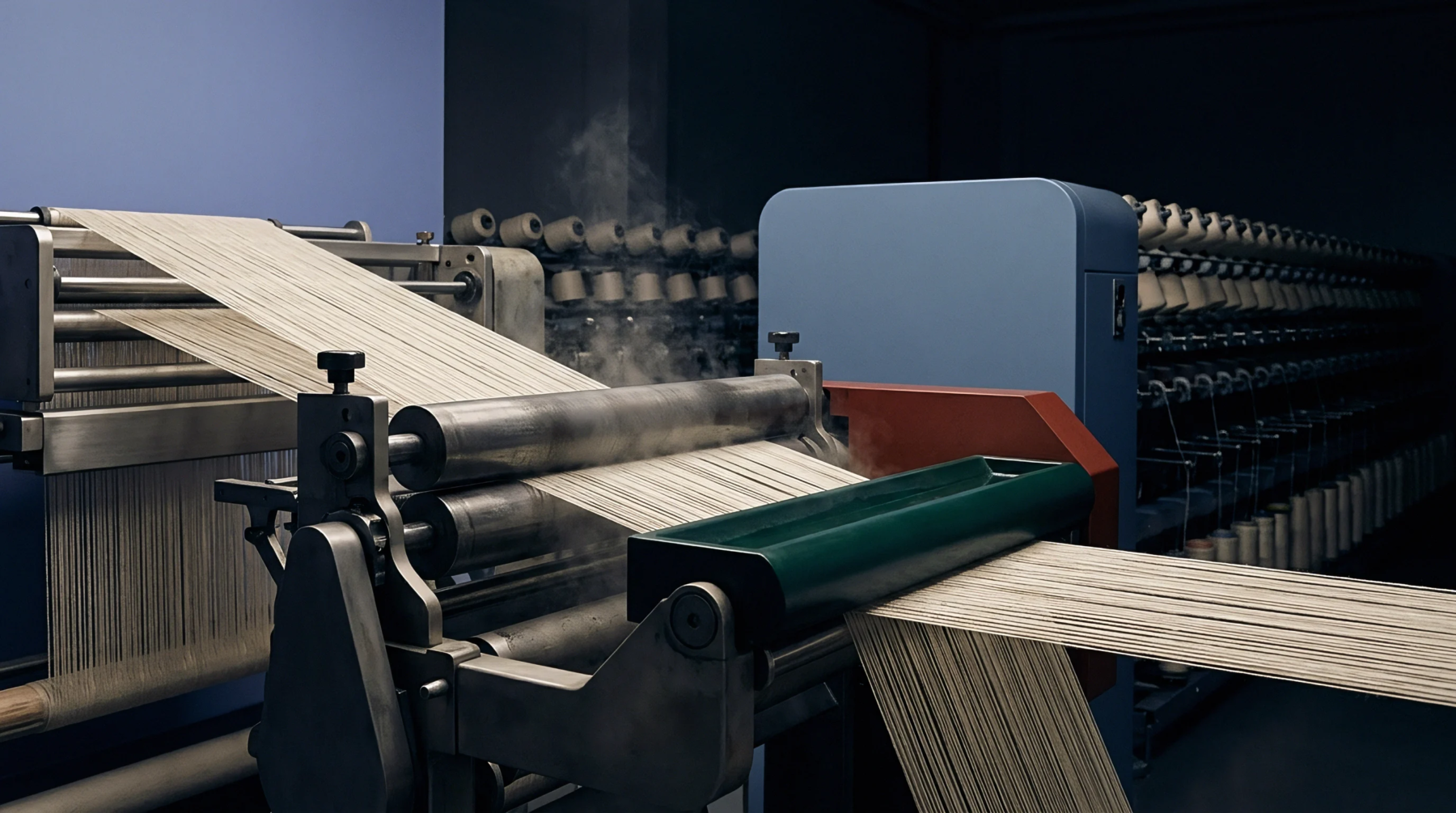

Structural packing limits, reed selection and final fabric hand feel depend directly on accurate yarn width values. Warping and sizing specifications utilize measured yarn diameter to select correct reed counts, drop wire inner dimensions and heddle eye sizes, which prevents yarn chafing during continuous shed cycling. When raw flax variability causes unexpected shifts in yarn diameter, loom operators observe warp crowding in the reed, leading to fuzz formation, clinging shed openings and warp stop activations.
In finished linen textiles, yarn width dictates pore dimensions, air permeability and opacity metrics recorded on technical specification sheets. Fabric structures woven without accounting for variations in yarn diameter develop irregular beat-up bands, fluctuating fabric weights and uneven dye pick-up across piece-dyed lots.
