Resolving Discrepancies between Real Time Telemetry Scoring and off Loom Inspection Metrics

Divergence

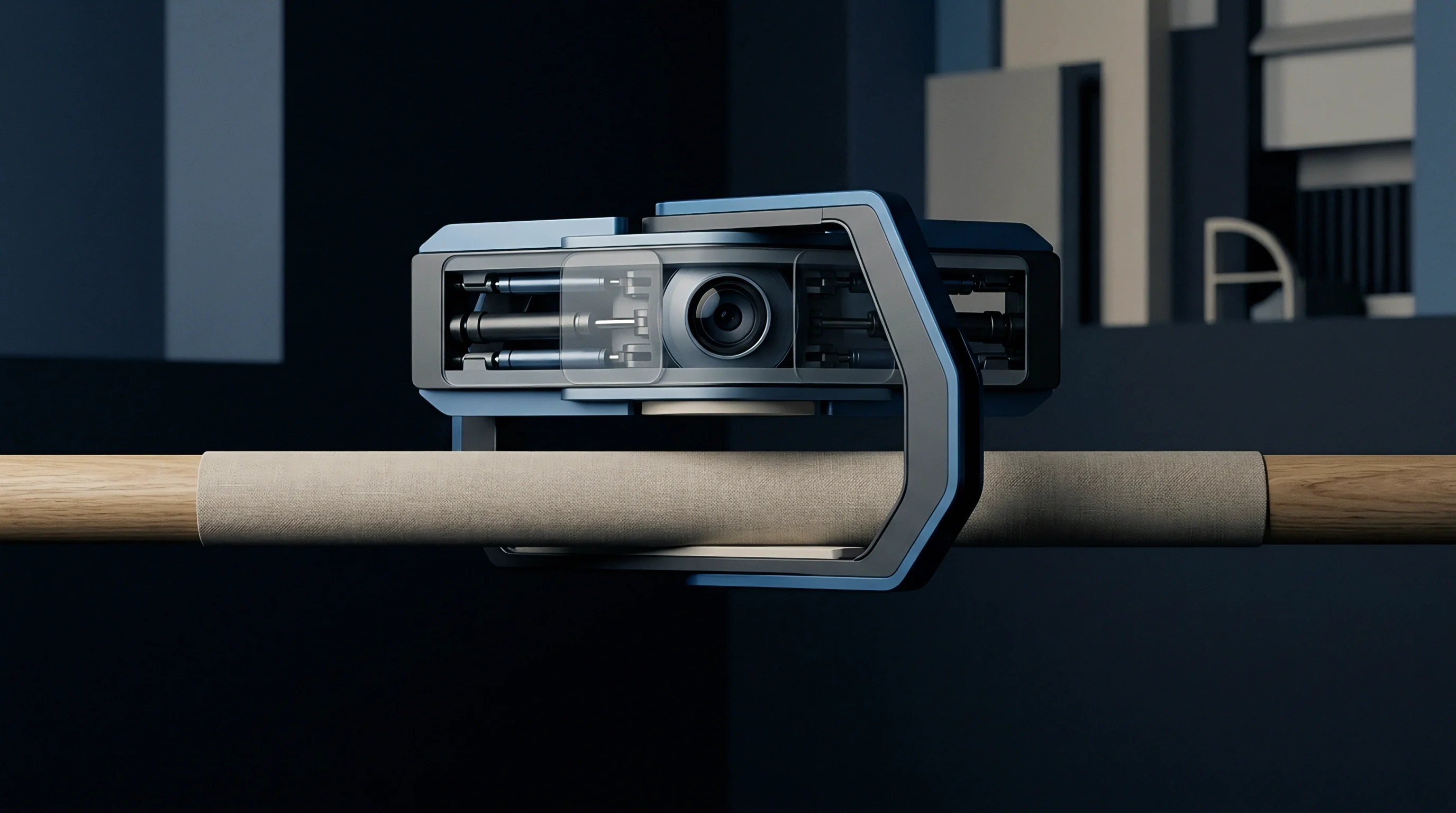

Optical line-scan cameras mounted on the front crossrail capture greige cloth forty millimetres forward of the cloth fell under four hundred kilopascals of running tension. That optical record captures an active dynamic web running across the breast beam at five hundred picks per minute, registering surface disturbances through specular reflectance sensors. Once the batch unrolls on a static inspection table twelve hours later, half of those registered anomalies disappear, while defects undetected on the machine become visible to the naked eye.

The discrepancies between automated digital scoring logs and manual perch tallies originate in the transition from dynamic elastic extension to free structural relaxation.

Production facilities run into immediate friction when automated telemetry marks a roll as secondary quality while manual inspectors grade the same linear yardage as first-tier export cloth. The optical sensor evaluates reflectance shifts across illuminated pixels, logging slubs, reed marks, and filling bars according to programmed greyscale thresholds. Human examiners inspecting under diffused overhead illumination evaluate defects by tactile bulk, finished utility, and structural severity.

Camera lenses accumulate lint.

Sensors register mechanical flutter at the fell as broken picks during beat-up cycles.

Optical arrays record yarn hairiness as lateral diameter swelling, categorizing protruding bast fibers as serious filling slubs. The digital telemetry system registers every yarn diameter enlargement exceeding one hundred fifty percent of nominal yarn count as a penalty event, accumulating demerit tallies that exceed commercial thresholds. Manual inspectors overlook surface hairiness because gentle mechanical finishing flattens superficial fibers without disrupting cloth structure.

The divergence between algorithmic detection and human tactile assessment creates continuous dispute between shedding managers and post-loom quality auditors.

Inconsistent Defect Logging at Production Speeds

A high-speed rapier cycling at six hundred picks per minute generates substantial mechanical vibration across the sley and front support brackets. This cyclical shock shifts the focal plane of line-scan optical sensors by fractions of a millimetre during beat-up. Structural warp vibration alters the apparent aperture between adjacent ends, creating false warp streaks in the digital telemetry log.

The machine records a continuous streak defect across twelve metres of production. Off-loom inspection reveals uniform warp spacing once the greige web rests outside machine vibration.

Loom motion creates specific blind spots for real-time camera assemblies, particularly along the temple regions. Temples hold the cloth edges out to reed width, creating localized tension gradients and mechanical distortion directly beneath the ring casings. Telemetry sensors positioned across the breast beam cannot distinguish between structural mispicks and the localized distortion created by temple pins.

The sensor flags the selvage zones as continuous irregularities, inflating the automated fault tally.

• Vibration Induced Sley Flutter registers false reed marks across the middle third of the cloth width whenever main motor drive belts stretch past nominal operating tension.
• Localized Temple Pin Punctures trigger continuous optical width alarms along the outer five centimetres of greige goods during high-density linen shedding.
• Transient Filling Slacker Loops register as gross filling bars on camera arrays before take-up roll tension pulls the loop flat against the face.
• Optical Sensor Focal Inversion misinterprets yarn chatter on coarse wet-spun linen warps as repeated missing ends over consecutive beat-up strokes.

Sensor Drift and Environmental Contamination

Airborne sizing dust and short linen fibrils settle continuously on camera lenses and light-emitting diode bars during a twenty-four-hour shift. As particulate matter coats the optical housing, light transmission values drop by fifteen to twenty-two percent across specific sensor channels. The automated scoring engine interprets the lowered illumination floor as dark yarn contamination, adding spurious fault coordinates to the roll manifest.

The sand roll slips.

Thermal expansion within the loom frame alters optical sensor alignment relative to the breast beam guide plate. Ambient shed temperatures rising eight degrees Celsius between morning and afternoon shifts displace the optical focal axis by up to zero point four millimetres. This displacement blurs edge detection algorithms calibrated to single-yarn tolerances.

Linen yarn lacks uniformity.

The shed manager asserts that optical cameras detect theoretical yarn imperfections rather than commercial greige defects, attributing high automated penalty tallies to hypersensitive detection thresholds that disregard wet-finishing shrinkage.

Tension

Elastic elongation pulls individual warp ends taut during shedding, flattening the yarn cross-section and concealing partial thick places within the harness cycle. Under four hundred newtons of total warp sheet tension, the interlacing points between wet-spun linen warp and dry-spun filling yarns lock into forced rectangular geometry. Thick filling spots squeeze flat between adjacent warp ends under this high longitudinal force.

Once the cloth is cut from the take-up roll and left on the warehouse floor, the stored elastic strain dissipates completely. The wet process alters geometry.

Relaxation reverses the forced flatness of the interlacing points through crimp interchange. Warp ends contract longitudinally by four to seven percent in pure linen constructions, forcing the filling yarns into deeper undulations. Thick spots that appeared flat and unobtrusive to the optical cameras at the beat-up fell swell outward into prominent surface slubs as the warp crimp relaxes.

Tension masks structural defects.

Off-loom measurements display significant dimensional contraction compared to on-loom encoder telemetry. A cut measuring one hundred running metres on the loom take-up roll contracts to ninety-five point five metres after forty-eight hours of resting in ambient conditions. This longitudinal shrinkage compacts the filling count, increasing the visible density of minor yarn variations per linear metre.

A wet-spun linen plain construction contracts five point eight percent in length within forty-eight hours of removal from the loom take-up spindle under ambient mill conditions.

Greige Relaxation and Crimp Interchange

Structural contraction during unconstrained resting alters both the length and width of the greige textile. Warp crimp increases while filling crimp decreases until internal bending moments between intersecting yarn systems reach mechanical equilibrium. In balanced plain constructions, warp yarns give up tension, causing filling yarns to bend around them with increased curvature.

This mechanical adjustment forces hidden thick places up to the surface plane of the cloth.

Off-loom inspectors perceive these relaxed slubs as major four-point defects under raking light. Real-time telemetry systems scored those identical coordinates as zero-point acceptable yarn variations because the running tension held the yarn flat within the optical focal plane. The discrepancy is structural rather than algorithmic.

Relaxation tightens the yarn sett.

When cloth constructions feature asymmetrical sett balances, such as a high-density warp with low filling insertion rates, dimensional relaxation manifests unevenly. The warp takes up substantial length while the filling exhibits minimal lateral contraction. This asymmetry skews the aspect ratio of defect clusters recorded by automated telemetry.

Pick Density Shifts across the Cut

Counted picks rise from twenty-two per centimetre on the running machine to twenty-three point five per centimetre after twenty-four hours of flat resting on the timber pallet. This compaction shortens the physical spacing between adjacent defects, clustering separate small anomalies into a single continuous fault zone under manual inspection protocols. The automated telemetry record logs two isolated two-point slubs separated by twelve millimetres of normal cloth.

After relaxation, the manual perch examiner measures the same flaws as a single overlapping four-point defect.

Take-up tension distorts fault length. An end-break gap measuring fifteen millimetres under tension shrinks to eleven millimetres on the perch, shifting the penalty assignment from a three-point category down to a two-point category under ASTM D5430. The discrepancy alters the commercial grade of entire cut pieces.

Uncalibrated tension relaxation shifts defect coordinates along the longitudinal axis of the roll, rendering real-time telemetry coordinates useless for perch verification and causing incorrect salvage cut locations that destroy merchantable yardage.

Perch

Manual grading tables position the examiner eighty centimetres from the tilted viewing plane under artificial daylight matching international illumination ratings. The inspector advances the greige roll at fifteen to twenty-five metres per minute, controlling cloth transit via foot pedals while recording defects on an electronic tally board. The inspector scores what eyes register.

Visual examination incorporates tactile evaluation, where the inspector runs fingers across irregular slubs to judge density and fiber binding.

Commercial purchase contracts enforce ASTM D5430 four-point thresholds where lots exceeding twenty-eight penalty points per one hundred square metres face automatic commercial rejection.

Perch tables run under diffuse lighting. The angle of incidence highlights three-dimensional relief, casting shadows behind surface knots and raised filling loops. Optical cameras mounted on the loom employ bright field coaxial lighting, which evaluates color and light transmission rather than surface relief.

A raised slub that casts a heavy shadow on the perch appears translucent under direct coaxial machine illumination, producing a minor grey-scale dip that escapes automated penalty thresholds.

Why Do Optical Scanners Overlook Broken Picks?

Line-scan telemetry calculates pixel reflectance drops across fixed transverse segments rather than tracing individual broken end trajectories across the full reed spread. When a filling yarn snaps mid-shed, the remaining tail often beats into the fell alongside the adjacent pick, creating a localized double pick that masks the missing section. The camera registers normal total light attenuation across that transverse slice because two yarn masses occupy the fell zone simultaneously.

The off-loom manual inspector spots the broken tail instantly under oblique perch illumination, penalizing the fault as a four-point filling error.

Filling loops along the selvage present another persistent detection failure for automated cameras. Because linen yarn possesses high flexural rigidity, filling tails snap backward during rapier transfer, forming loops that project out from the edge. Loom sensors disregard the outermost thirty millimetres of cloth to avoid edge curl artifacts, blindfolding the telemetry to selvage loop defects that off-loom examiners classify as major aesthetic flaws.

Human Perceptual Limits under Perch Lighting

Viewing stations conforming to ASTM D5430 position fluorescent tubes perpendicular to the cloth surface at an angle that accentuates surface fuzz. After three continuous hours of inspecting greige goods, human visual acuity drops measurably due to ocular fatigue. Small structural faults such as single missing ends or fine reed marks evade human detection at transit speeds exceeding twenty metres per minute.

The automated camera array logs these microscopic structural faults with continuous fidelity regardless of shift length.

Perch evaluation relies upon standardized decision logic to separate tolerable raw-material variance from actionable manufacturing errors.

• Slub Length Verification isolates pure flax root swellings from spun yarn defects by testing fiber cohesion under thumbnail friction.
• Stop Mark Classification measures the distance between compressed pick rows to determine if an automated start mark requires an allowance cut.
• Oil Contamination Tracing determines whether mineral oil spots penetrate the yarn core or sit loosely on superficial surface fuzz.
• Width Uniformity Confirmation verifies whether selvage-to-selvage dimensions comply with purchase contract tolerances across the entire roll length.

Standard purchase agreements incorporating ASTM D5430 designate the physical perch inspection manifest as the final legal record for lot acceptance, rendering real-time telemetry logs advisory unless specific bilateral contract amendments give digital records legal precedence.

Threshold

Automated scoring systems convert grey-scale contrast variations into geometric defect boundaries using spatial coordinate maps. The machine assigns coordinates based on bounding boxes measured in raw pixels. A pixel cluster covering a continuous dark zone receives an area calculation that the telemetry algorithm translates into an equivalent linear flaw length.

Pixel clusters overstate nep severity.

Four-point grading frameworks operate on linear fault length rather than surface area. A fine slub that spans six inches along a single filling yarn receives a two-point penalty under ASTM D5430. An automated vision system calculating total pixel attenuation treats that six-inch line as a minor optical disturbance, often assigning it a zero-point score because the absolute contrast drop falls below the triggering threshold.

Conversely, a spherical nep measuring three millimetres in diameter creates a massive localized contrast drop, causing the vision algorithm to award a four-point penalty that manual inspectors score as a one-point pinhead flaw.

A three-millimetre flax nep triggers four penalty points on uncalibrated optical telemetry while ASTM D5430 assigns exactly one point on the visual perch.

Translating Pixel Clusters to Four Point Metrics

The standard grading procedure assigns single-point to four-point penalties based strictly on physical flaw length measured with an inspection ruler. Flaws up to three inches receive one point, flaws between three and six inches receive two points, flaws between six and nine inches receive three points, and flaws exceeding nine inches receive four points. Maximum four points accumulate per single linear yard regardless of defect density.

Optical telemetry systems do not naturally constrain point accumulation to four points per linear yard unless programmed with rolling window aggregators. Without this operational restraint, an automated camera system logs twenty-four points across a single square yard that contains multiple minor yarn imperfections. This mathematical divergence inflates the calculated point tally per one hundred square metres, classifying acceptable commercial cloth as grade-four scrap.

Can Automated Point Mapping Replace Greige Perches?

Optical line arrays record hundreds of micro-slubs that disappear into the finished linen construction after commercial wet finishing. Natural flax contains variations in lignin content, fiber separation, and maturity that cause harmless optical density spikes. Perch examiners trained in linen finishing overlook these biological features because the scouring and bleaching processes dissolve loose pectin, flattening the yarns and removing minor color variations.

The automated vision engine lacks chemical foresight, scoring every raw bast variation as a permanent structural error.

Calibrating automated vision systems demands dynamic weighting filters that suppress isolated optical clusters under forty square millimetres while boosting sensitivity for continuous warp-direction streaks. When digital filters discount flax neps and enforce a rolling four-point ceiling per linear metre, telemetry logs correlate with off-loom perch manifests within an eight percent margin of error. Off-loom perches confirm salable yield.

1. Spatial Density Aggregation establishes continuous bounding boxes around neighboring pixel anomalies located within twenty millimetres of each other.
2. Dimensional Length Projection converts diagonal and transverse defect vectors into standardized longitudinal length values for four-point categorization.
3. Biological Flaw Filtering subtracts low-density surface fuzz signals from structural yarn defects using multi-channel chromatic analysis.
4. Rolling Window Point Capping restricts the cumulative penalty score of any linear yard block to four points maximum, matching the physical manual protocol.

Digital defect clusters require physical length conversion before any camera log can predict off-loom grading.

Arbitration

Financial reconciliation between real-time loom logs and off-loom perch manifests demands continuous numerical alignment between digital timestamps and physical yardage stamps. Optical logs identify defects by theoretical pick number and millisecond run-time calculations. The physical cloth roll arriving at the inspection bench carries stamped linear metre markings stamped by mechanical contact wheels at the take-up motion.

Mechanical contact wheels slip on smooth greige linen, accumulating coordinate discrepancies of two to four metres across a five-hundred-metre roll. Electronic logs retain raw data.

Coordinate drift prevents perch inspectors from locating the exact flaw identified by the loom camera. When an inspector checks the roll at metre mark one hundred forty-two to verify an automated four-point fault flag, the physical defect actually sits at metre mark one hundred forty-five due to cumulative wheel slippage. The inspector marks the location clear of defects, recording an unconfirmed telemetry error.

Digital reconciliation systems must execute dynamic elastic coordinate matching to align the records.

Linear Meterage Slippage and Coordinate Reconciliation

Rotary shaft encoders track gross yarn delivery across the sand roll while off-loom electronic measuring wheels register relaxed yardage. The difference between these two readings represents total greige shrinkage plus roll stretch. Aligning digital telemetry coordinates with manual perch locations requires applying a dynamic contraction coefficient across the roll data file.

This coefficient scales the digital pick count to the actual relaxed length measured on the grading bench.

Modern sheds print physical two-dimensional barcodes onto the cloth selvage every fifty metres during shedding. The barcode reader on the manual perch scans these marks, instantly resetting the coordinate offset between the digital log and the physical cloth roll. This tracking mechanism eliminates search intervals, allowing examiners to inspect flagged defect coordinates directly.

Commercial Settlement on Rejected Cut Lengths

Purchase contracts define acceptable penalty point ceilings per one hundred square metres alongside mandatory allowance cuts for continuous structural faults. When the automated telemetry records forty penalty points while the manual perch manifest counts twenty-two points, the invoicing department cannot issue final credit notes without a legal hierarchy of metrics. Contract margins depend on penalty tallies.

The standard commercial protocol stipulates that off-loom visual inspection results override automated machine telemetry for all aesthetic and surface grading decisions. Automated telemetry logs govern claims regarding hidden stop marks, tension variation bands, and total pick count compliance. Batch credits require mathematical reconciliation.

Whether future automated inspection systems can successfully predict the chemical disappearance of natural bast fiber slubs during wet finishing remains unresolved across the linen trade.
